Communication Modules

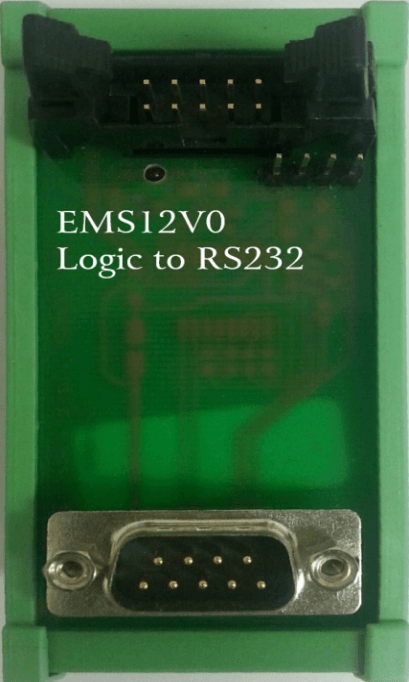

EMS12

LOGIC to RS232 Module

EMS12 is one of many different  communications interfaces used with EMS controllers. It provides an RS232 interface which can be used for direct connection to a PC or modem for local setup or remote monitorng. The transmission distance is limited to 15 meters. The unit is housed in a DIN Rail module and connects to the controller by a short ribbon cable.

Learn more

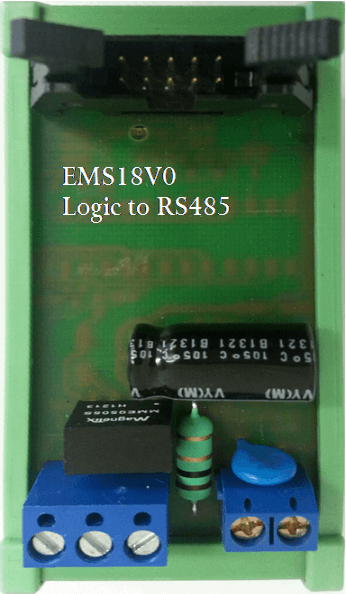

EMS18

LOGIC to RS485 Module

EMS18 is one of many different communications interfaces used with EMS controllers. It provides an RS485 interface which can be used for direct connection to Building Management System ot PLC for remote monitoring. The transmission distance is limited to 1 km. The unit is housed in a DIN Rail module and connects to the controller by a short ribbon cable.

Learn more

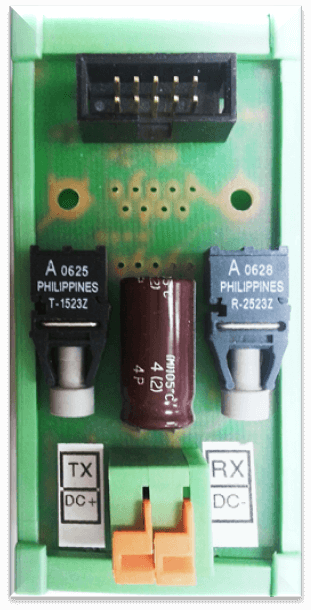

EMS20

LOGIC to Optical Module

EMS20 is one of many different communication interface used with EMS controllers. It provides a Fiber Optic interface which can be used for direct connection to a remote Unit or Mimic. The transmission distance is limited to 20 meters and provides total galvanic isolation and high EMC and EMI immunity. The unit is housed in a DIN Rail module and connects to the controller by a short ribbon cable.

Learn more

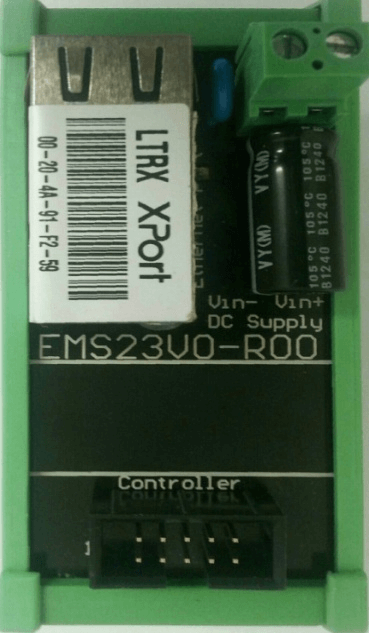

EMS23

LOGIC to Ethernet Module

EMS23 is one of many different communications interface used with EMS controllers. It provides Ethernet connectivity which can be used for direct connection to a Local Area Network for remote monitoring. The unit is housed in a DIN Rail module and connects to the controller by a short ribbon cable.

Learn more

EMS24

LOGIC to USB Module

EMS24 is one of many different communications interfaces used with EMS controllers. It provides a USB interface which can be used for direct connection to a PC, Laptop or Modem for local setup or remote monitoring. The transmission distance is limited to 3 Meters. The unit is housed in a DIN Rail module and connects to the controller by a short ribbon cable.

Learn more

EMS30

SNMP Adapter

EMS30 is one of many different communications interfaces used with EMS controllers. It provides Ethernet SNMP connectivity which can be used for direct connection to a Local Area Network for remote monitoring. The unit is housed in a DIN Rail module and connects to the controller by a short ribbon cable.

Learn more
