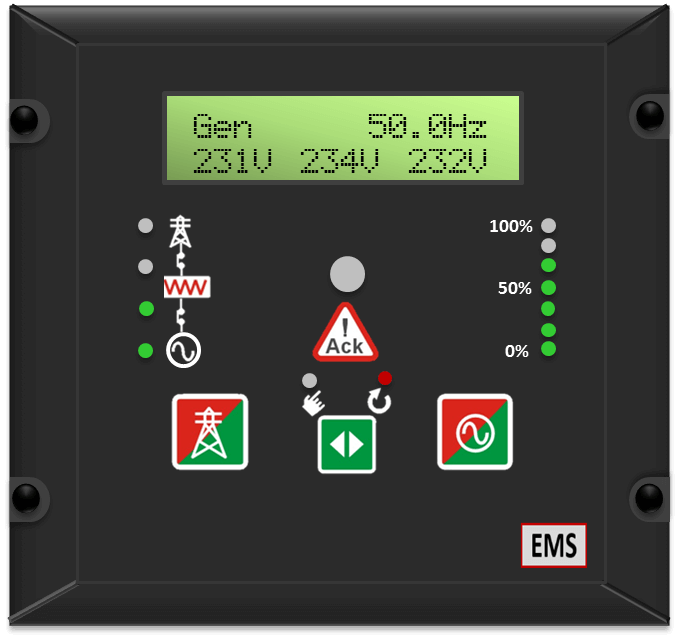

Power Management System

EMS314

Power Meter with AMF & ATS

EMS314 integrates all the AC functions required for Telecom Genset applications. It provides Mains Metering , Genset Metering, AMF and ATS control to supplement the basic engine controllers. It also provides a high level of system protection, which is not available with converntional metering hence improving reliability and reducing system cost.

Learn more

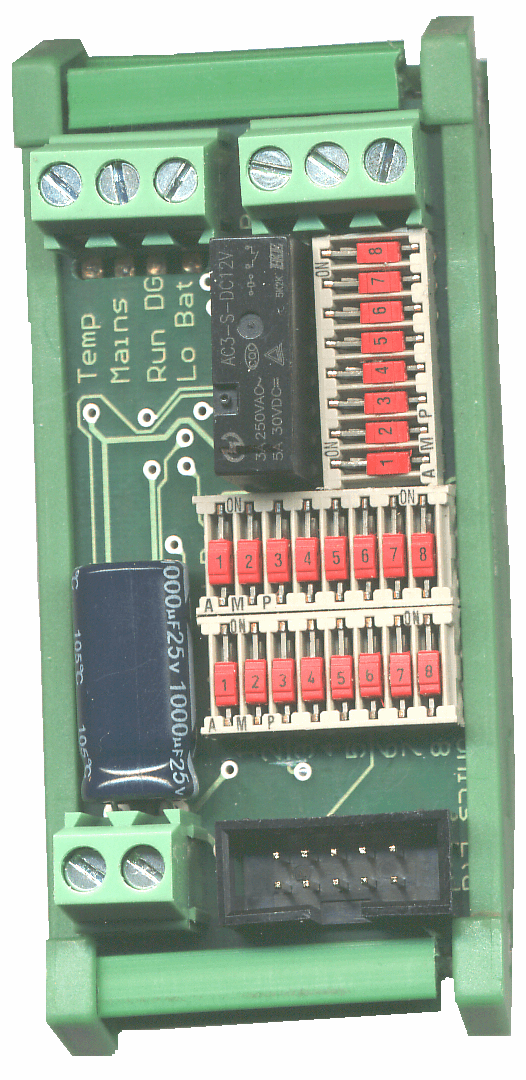

EMS316

Multistart Module

EMS316 Multistart unit is used in the celluar Telecom Sector for delaying the starting of the Genset after a mains fail until either the batteries need charging or the cell hut temperature require airconditioning. Its purpose is to save fuel by running the Diesel Genset only when required. It is a Din Rail mounted unit and can provide the front end monitoring for any Genset controller with an autostart input.

Learn More

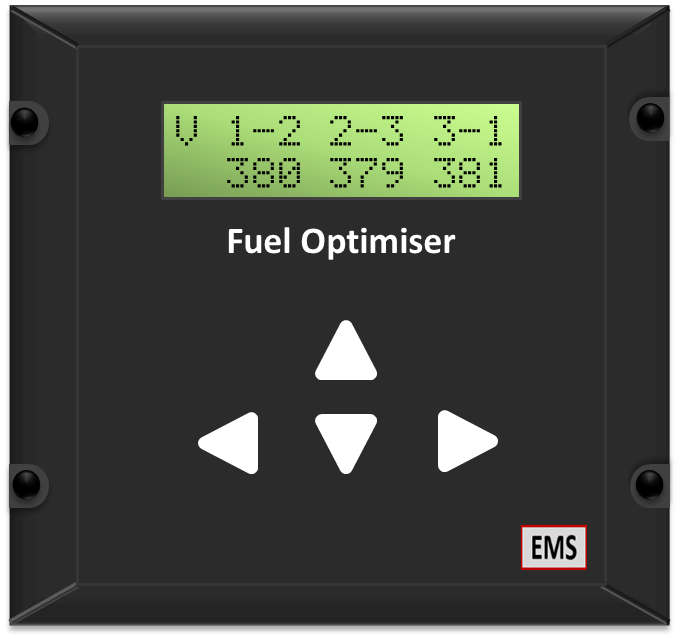

EMS339

Fuel Optimiser Unit

EMS339 Controller is specifically designed for Telecom applications which minimises Diesel Fuel consumption by delaying the DG start, after a Mains Failure. The DG will start and stop on a demand basis governed by the Room Temperature and Battery requirements. The unit can be setup to monitors the Mains directly or detect a mains failure from a digital input. The unit provides 3 outputs for system control or information. Alarms and Warnings are shown on the LCD and supplemented by the Alarm output. The unit maintains 4 independent hour meters: Total Operational Hours, Mains Hours, Battery Hours and DG Run Hours.

Learn More

EMS430

Battery Supervisor

EMS430 Battery Supervisor is a din mounted module which monitors the performance of 12, 24 or -48 volt batteries. Battery current, temperature, voltage and state of charge are monitored. An isolated RS485 link is provided for linking to supervisory equipment.

Learn More

EMS431

Battery Supervisor

EMS431 Battery Supervisor is a din rail mounted module which monitors the performance of 12, 24 or -48 volt batteries. Battery current, temperature, voltage and state of charge are monitored. An isolated RS485 link is provided for linking to supervisory equipment.

Learn More
