Remote Monitoring Solutions |
||
 |
||
 |
||
 |
||
 |
||
Manual & Auto Start Controllers |
||
|
EMS339 Fuel Optimiser Unit |
|
|
|
EMS339 Controller is specifically designed for Telecom applications which minimises Diesel Fuel consumption by delaying the DG start, after a Mains Failure. The DG will start and stop on a demand basis governed by the Room Temperature and Battery requirements. The unit can be setup to minitor the mains directly or detect a mains failure from a digital input. The unit provides 3 outputs for system control or information. Alarms and Warning are shown on the LCD and supplemented by the Alarm output.The unit maintains 4 independent hour meters: Total Operational Hours, Mains Hours, Battery Hours and DG Run Hours.
|
||
| |
||
| OVERALL SIZE | ||
| 100mm x 120mm x 60mm | ||
| PANEL CUTOUT SIZE | ||
| 92mm x 92mm | ||
| WEIGHT | ||
| 125g | ||
Remote Monitoring Solutions |
||
|
EMS700 DataLogger |
|
|
|
The EMS700 data logger is a communication device which is intended to monitor ELTRAC (Single Phase / Multi Phase AC Meter) meters, site security, and other critical conditions. It gets all this information from ELTRAC meters through RS485 communication. It also has the ability to transfer this data to Remote server on request.
|
||
| The collected data is then used to monitor and action, alarms and log these alarms in an internal memory. | ||
| OVERALL SIZE | ||
| 180mm x 126mm x 51mm | ||
| PANEL CUTOUT SIZE | ||
| 155mm x 117mm | ||
| WEIGHT | ||
| 270g | ||
Remote Monitoring Solutions |
||
|

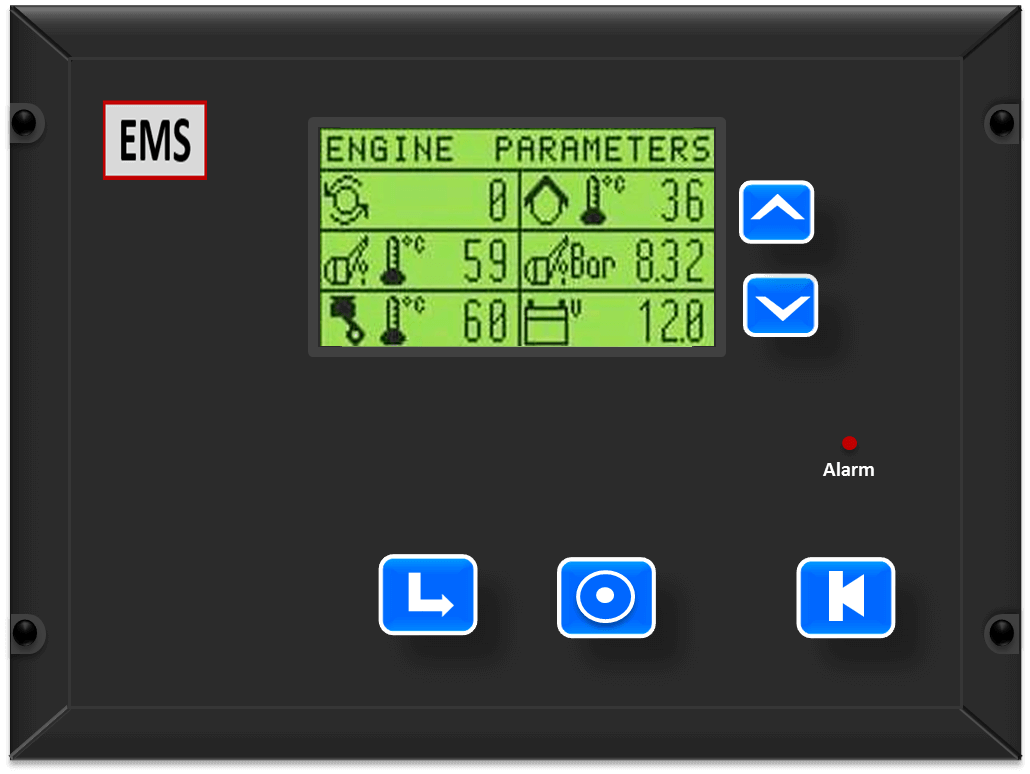

EMS840 Remote Monitoring System |
 |
|
|
EMS840 Remote Monitoring System (RMS) is a data logger and communications device which allows widely distributed cellular sites to be monitored. The unit is intended to monitor on site power sources, including Mains Power conditions, Diesel Generator performance, site security, and other critical site conditions. The collected data is automatically tranferred to a central sever via GPRS connectivity, where warnings and alarms can be actioned, and site performance data is collated and analysed for reporting purposes.
|
||
| |
||
| OVERALL SIZE | ||
| 180mm x 126mm x 51mm | ||
| PANEL CUTOUT SIZE | ||
| 155mm x 117mm | ||
| WEIGHT | ||
| 270g | ||
Remote Monitoring Solutions |
||
|
EMS702 Street Light Controller & Event Logger |
|
|
|
The EMS702 is a street Light Controller and Event Logger. The unit is intended to monitor the Mains Power conditions, site security, and has an output to control the street light. The unit logs AMF reasons: 3 phase volts and amps, netural amps, frequency, 3 phase KW, KWH, PF, schedule for current month, On/Off hours and minutes. The collected data is automatically transferred to central sever via GPRS connectivity, where warnings and alarms can be actioned, and site performance data is collated and analysed for reporting purposes.The street lights can be turn on/off via the SMS.
|
||
| OVERALL SIZE | ||
| 180mm x 126mm x 51mm | ||
| PANEL CUTOUT SIZE | ||
| 155mm x 117mm | ||
| WEIGHT | ||
| 270g | ||
